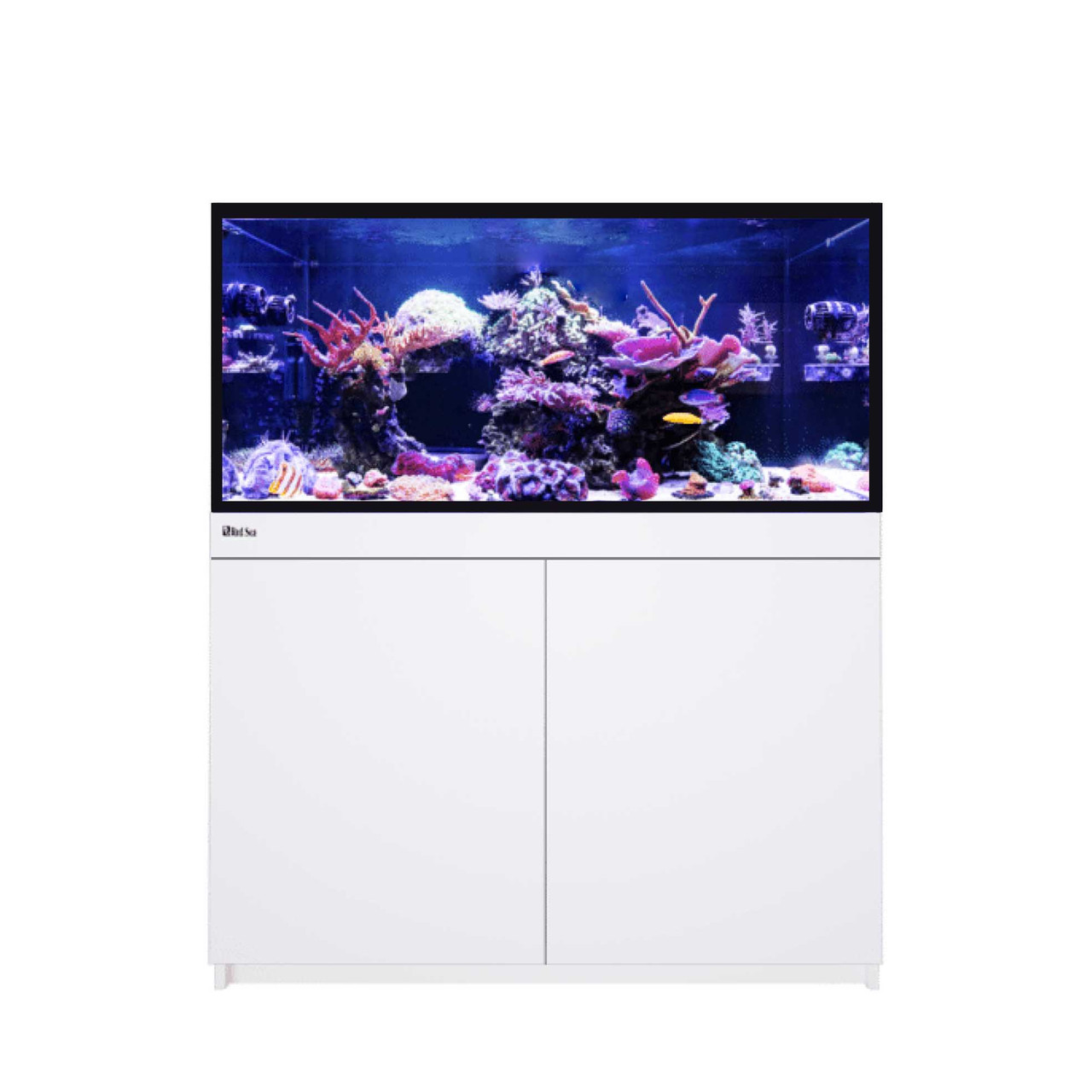

REEF-FRAME 350 SPECIFICATIONS-
Display tank length- 120cm, height 50cm, width 55cm
Total system height- 137cm
Water volume- display tank 282 Liters, in-cabinet sump 71 Liters
Ultra-clear front glass 12mm, Ultra-clear side glass 15mm, Bottom glass 12mm
The REEF-FRAME line of popular-sized reef systems blends years of hobbyist input with precision engineering and forward-thinking design. All models feature eurobracing for added strength, ultra-clear glass bonded with high quality euro-silicone for long-lasting structural integrity, and new plywood cabinets designed to fully support the glass structure.
These beautiful aquariums provide a lasting frame, so you can create a stunning picture.
REEF-FRAME systems are available in a fully bare version for complete customization, or a MAX version equipped with a full ecosystem of ReefBeat smart devices.

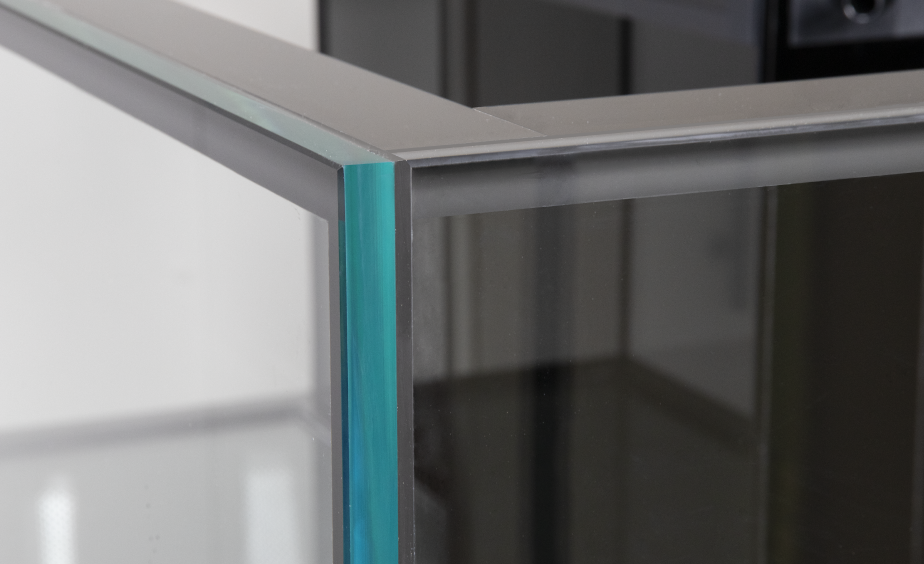

REEF-FRAME aquariums are made of ultra-clear glass with increased thickness of up to 15 mm/0.59”, eurobraced for extra strength, and bonded with high quality euro-silicone for long-lasting, structural integrity.
REEF-FRAME aquariums are mounted on marine-spec plywood cabinets designed to support the full contour of the glass, with adjustable feet for perfect levelling. REEF-FRAME cabinets are also available in a classic oak finish in addition to black and white.
REEF-FRAME systems benefit from 25mm diameter curved return outlets that provide optimal flow. The REEF-FRAME 350 and 500 models feature dual return outlets that can be connected to either a single or dual return pump system.

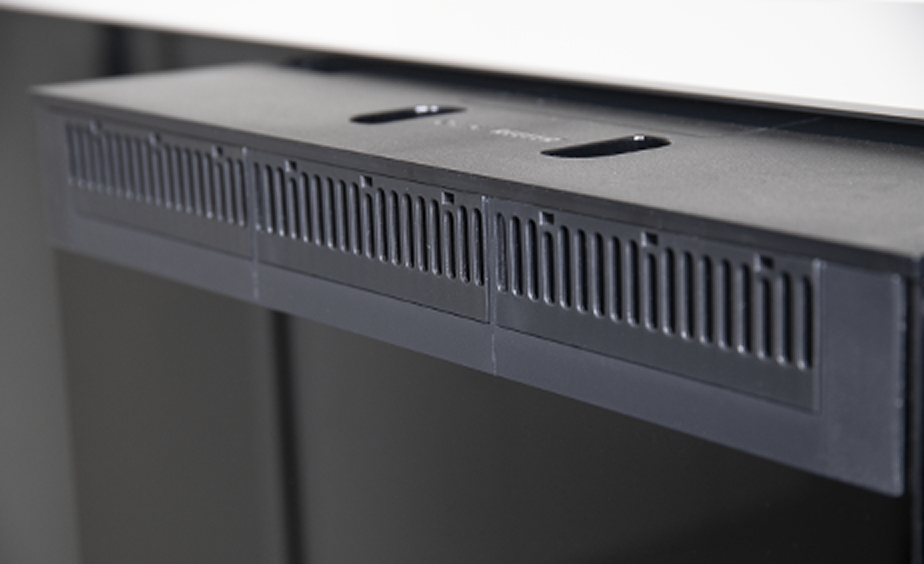

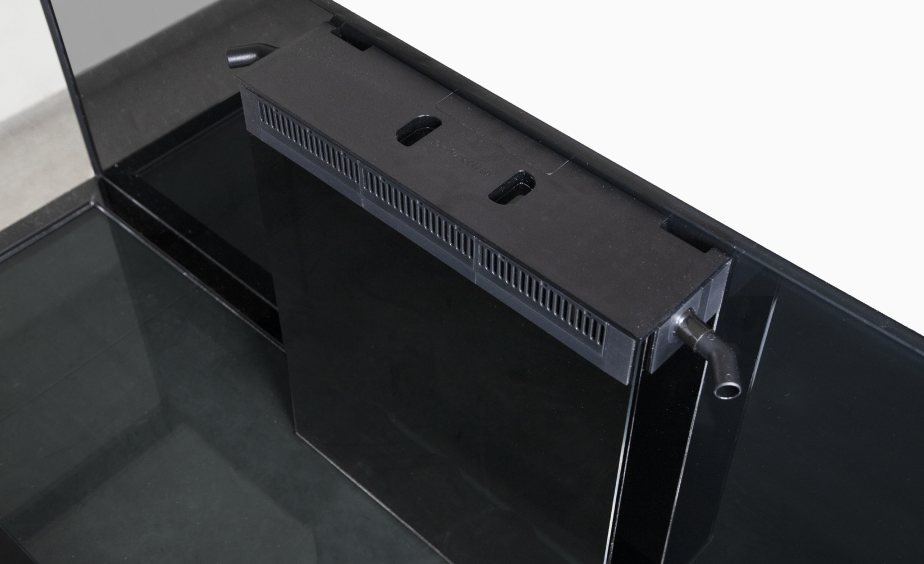

The piping is hidden inside a large central overflow box, which has a large surface skimmer with removable comb parts, for easy cleaning.

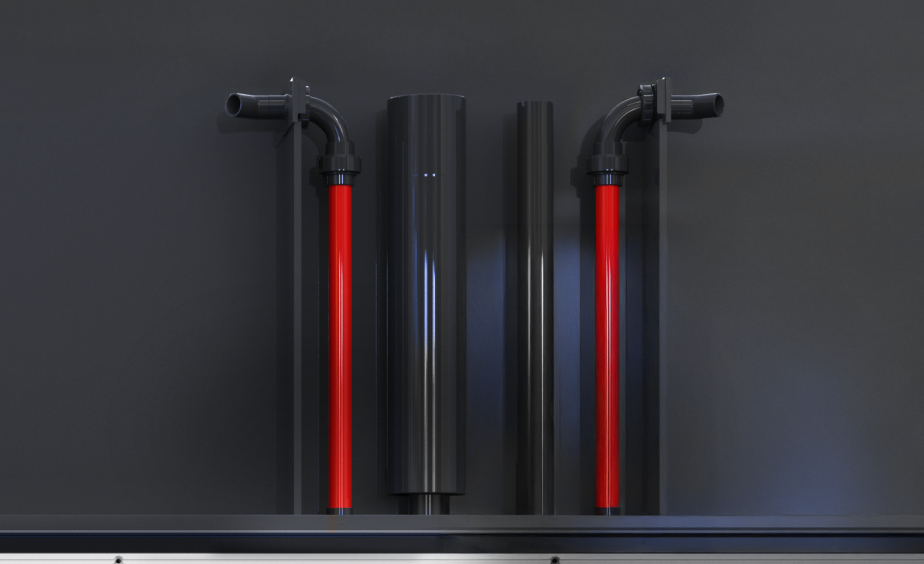

The downflow pipes are enlarged to promote quieter flow, with a rectangular profile for enhanced circulation.
REEF-FRAME systems include the new ReefGate, high-precision bespoke gate valve on the downflow pipe, allowing for easy regulation of the flow and a near silent operation.
REEF-FRAME systems have a removable, ReefMat-ready mechanical filtration compartment, complete with micron filter socks and media cups.
REEF-FRAME systems feature hydrodynamically superior piping that maximizes circulation, with optional connector kits in both metric and USA sizes for piping customization.

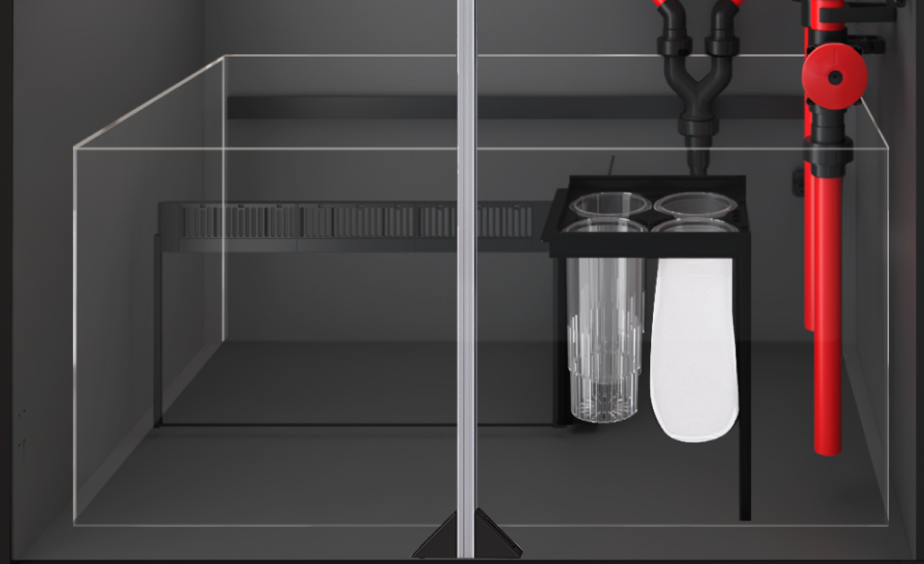

The high-performance Reef Spec sumps include a dedicated skimmer chamber with adjustable water height, an optional sump divider for a dedicated refugium chamber (not available for the 170 model), a ReefMat-ready easily removable mechanical filtration compartment, and a bubble trap to prevent air bubbles from returning to the aquarium.
